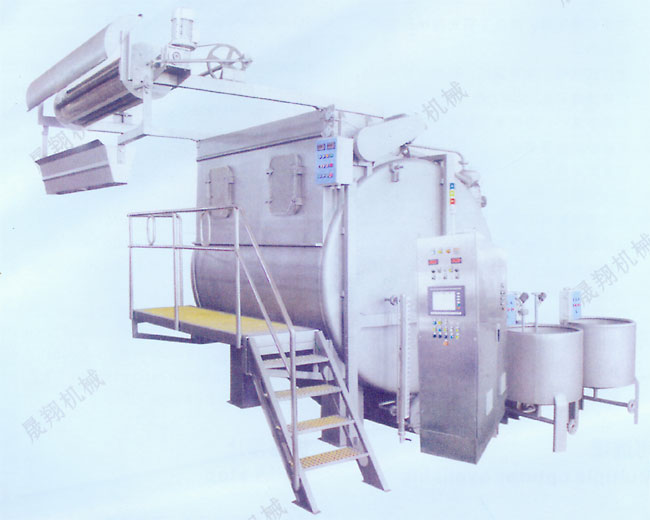

SX215L常温环保溢流系列染色机







产品详细信息

SX215L OVERFLOW DYEING MACHINE OF NORMAL TEMPERATURE AND ENVIRONMENTAL PROTECTION

产品优点:
  2000年以来,纺织印染行业在迅速发展的同时,环境保护问题也愈发突出,特别是纺织印染行业排放 的印染废水已成为中国工业系统中重点污染源之一,为此推广和使用节能型、低排放量的低碳型印染设备 已成为印染企业实现节能减排的重要途径。
Advantages :
Since 2000, the environmental issues have been increasingly prominent in rapid development of the textile printing and dyeing industry, and particularly the printing and dyeing wastewater discharged by the industry has been one of important sources of pollution in the China’s industrial system. Therefore, promotion and use of energy efficient low carbon printing and dyeing equipment with low emissions has become an important way for printing and dyeing enterprises to achieve energy conservation and emission reduction.

技术数据:
Main technical parameters
1、往复式摆布器,改进了织物摆动形式和 堆积方式;
2、丝□式喷嘴间隙可调性,根据织物特性, 织物速度可达350米/分;
3、装机容量小,合理节约耗电量;
4、变频控制主泵电机;
5、缝头探测器;
6、气动式阀;
7、触摸屏控制器;
8、操作温度最高可达98°C;
9、每管标称容量150kg、200kg和250kg;
10、完美的加料系统可编程,全自动加染料 和化学品,旁路循环系统;
11、带传感器液位测量;
12、最小浴比1: 3.7左右
13、管内铁氟龙板;
(1).Reciprocating cloth swing device, improving swing form and accumulation mode of textiles;
(2).Adjustable clearance of screwed nozzle , textile speed up to 350m/min according to its properties ;
(3).Small installed capacity, reasonably saving power consumption;
(4).Dual inverter control of main pump motor;
(5).End stitching detector;
(6).Pneumatic valve ;
(7).Touch-screen controller;
(8).Operating temperature up to 98°C ;
(9).Nominal capacity of each tube of 1 50kg, 200kg and 250kg;
(10).Perfect loading system-programmable, automatic adding dyes and chemicals, bypass circulatory system ;
(11).Sensor liquid level measurement;
(12).Minimum liquor ratio of about 1:3.7;
(13).Teflon plate inside tube ;

可选项
Multiple options available
根据使用中状况简化染色程序;
同步染色控制系统;
自动优化织物循环,同步的提布速度 和喷嘴压力,可靠的提布辊传送;
溢流水洗控制;
Simplifying dyeing procedures according to conditions in use;
Simultaneous dyeing control system; Automatically optimizing fabric circles, synchronized
cloth lift speed and nozzle pressure; Reliable transmission of cloth lift roller; Overflow rinsing water control;


快速停止 Quick stop
染色机在1秒内停止,避免缠绕;
使用内置式提布辊和低提升高度,使织物在绳状状态下 张力很小;
流畅的织物处理; u型布槽,优化织物运行;
染液匀压输送分配系统;
Dyeing machine stops within 1 second to avoid winding; Using built-in cloth lift roller and low lift height for small tension of textile in rope state;
Smooth fabric treatment;
U-type fabric slot to optimize textile running;
Dyeing liquor uniform pressure transmission distribution system;
