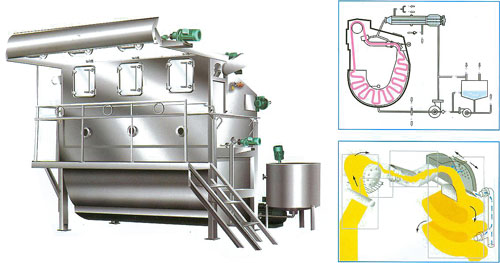

GM38常温染色机
GM38 DYEING MACHINE UNDER NORMAL TEMPERATURE


产品用途:
  该机主要用于各种天然纤维织物重量在50-1000克/米2的针织和机织物在常温常压状态下的漂白和染色,也可用于其它纤维、人造丝、腈纶、涤纶等混纺织物在常温常压下进行染色和处理,经过特殊改进可对毛巾布进行前处理和染色。
工作原理:
  被染织物在存布箱内通过无级变速控制的提升滚筒,由电动机直接驱动循环泵来实现,循环泵在机器底部将染液输出通过换热器送入喷嘴,织物经喷嘴后由折布系统折叠堆积,配有自动解结装置、喷水循环洗缸系统。
技术特性:
织物提升系统:
  传动型织物提升系统减低织物与提升滚筒之间的滑移问题,使织物表面达到不凡的处理效果,提升滚筒提供足够的提升力量,确保滚筒及织物接近同步运行,织物在导布辊的配合下,以最整齐的方式进入喷嘴中。
喷嘴:
  提供最柔和的织物处理以及最理想的染液与织物交换条件,该喷嘴提供更强的染液渗透力及更有效的运布能力,而且织物在喷嘴中被染液完全包围,因而织物可在松驰状态下浮于喷嘴的染液中,避免起毛现象。织物绞缠自解装置一旦喷口前端织物绞缠附下,此自动装置将立即使循环泵停顿,同时提升滚筒做反方向转动,直至织物恢复正常运作状态,随即自动按正方向运行,此装置不需操作人员人手开动工作门或其它按钮以纠正绞缠的毛病。
布速系统:
  织物于提升系统与折布系统均在同步状态下运行,确保织物整齐地摆放以充分利用储布阔度,从而达到最大的载布量且减低织物绞缠。液体分离及收集系统:液体分离及收集系统确保最大的载布量,并减少每一批量的耗水量及每缸循环率最大化。液体分离系统包括一个内置织物摇摺装置,在织物堆积在储布槽之前就将当中过剩的染液引离至染液处,再作循环。使每缸的循环率得以增加,达到更均匀的染色效果。
洗水系统:
  织物中分离出来的液体立即被收集及引导至溢流喉中排出,不会被织物再次吸收,浮于液面的脏物和泡沫通过收集管排放,因此提高洗水效率,节省用水量及加强织物处染的质量。
传动方式:
  强俄提升系统配备无级变速,由变频控制的减速齿轮马达驱动。


The use of the products:
This machine is mainly used for various natural fiber fabric which weight 50-1000 grams/meter bleaching and dyeing under the normal temperature and pressure, can also be used in other fibers, artificial silk, acrylic fibres, dacron, etc. and mix
fabrics to dye and deal with under normal temperature and pressure,can be used to deal with towel and dyeing after special improving.

Operation principle:
Circulation pump which was direct drived by motor can caught the fabric through the promotion cylinder which was controlled by the stepless speed change in the cloth case, The circulation pump exports the dye liquor through the heat exchanger from the machine bottom into the spray nozzle , The fabric is folded and piled up by pulldown system when the fabric through the spray nozzle ,the machine matches with the device of untieing automatically and the system of gushing out the water circularly to wash the jar.

Technological characteristic:
The fabric promoting system:
Transmission type fabric promote system lowers fabric and promote cylinder slippage problem, make the surface of fabric reach the uncommon result, promoting roller offers enough promotion power to ensure roller and fabric run at the synchronization. Under the cooperation of leading roller, fabric enters in the spray nozzle in the most regularly manner.
Spray nozzle:
Offer the softest fabric dealing with and most ideal dye liquor and conditions of fabric give-and-take, this spray nozzle offers stronger dye liquor infiltration strength and more effective cloth transporting ability, and the fabric is totally surrounded by the dye liquor in the spray nozzle, therefore the fabric can float in the dye liquor of the spray nozzle in the limp state, avoid the phenomenon of fluffing.
The fabric self-twist and tangle device:
Once the fabric in the front of spout entangles and twines and attaches, this automatics will make the circulation pump stop immediately, promote the cylinder and make it rotate in the opposite direction at the same time until the fabric resume the normal operation state ,and run in the correct direction whereat, this equipment need no operator man to start up the working door or other button to correct the twist and tangle trouble.
The cloth speed system:
The fabric runs under the synchronous state with the promoting system and cloth folding system to guarantee the fabric put in order and fully utilize of the width of cloth stored, in order to reach the most holding amount of cloth.
The liquid separating and collecting system:
Liquid separating and collecting system guarantee the amount of cloth carrying is the most, reduce the amount of water consumed of every batch and maximize the cycle rate. Liquid separate system including one built-in fabric shake, roll over device, it lead superfluous dyeing liquid to the dyeing liquid before fabric piled up in the cloth trough and then circle. Make the circulation rate of every vat increase, reach more even dyeing result.
Washing water system:
The separated liquid from the fabric is collected to and discharge from the throat of the overflow immediately and it will not be absorbed by the fabric again, dunghill and foam flowing on the surface of the liquid let through collected pipe in order to heighten the washing efficiency, save the water and strengthen the dyeing quality of the fabric dealed with.
Transmission manner:
Strong Russia promote system equipped with infinitely variable speeds,by gear wheel motor that controlled by frequency conversion.
